Advantages
- Due to the fact that it is positive drive & tensioning the belt is not required, the energy consumption is very low.
- Small diameter cylindrical end pulleys for small parts transfer
- Minimal inside radius for most widths
- Eliminates need for dead plates between conveyors in most applications
- No need for snubber or return rollers that can collect debris
- Positive drive making oily or wet applications possible
- Ideal for sanitary applications

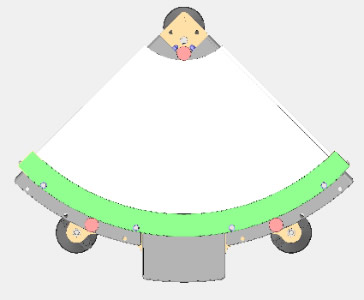

- A first for belt corners: The complete bed section can be removed using no tools leaving drive and support system open for cleaning and maintenance
Our Product

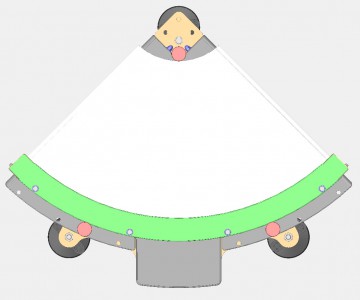

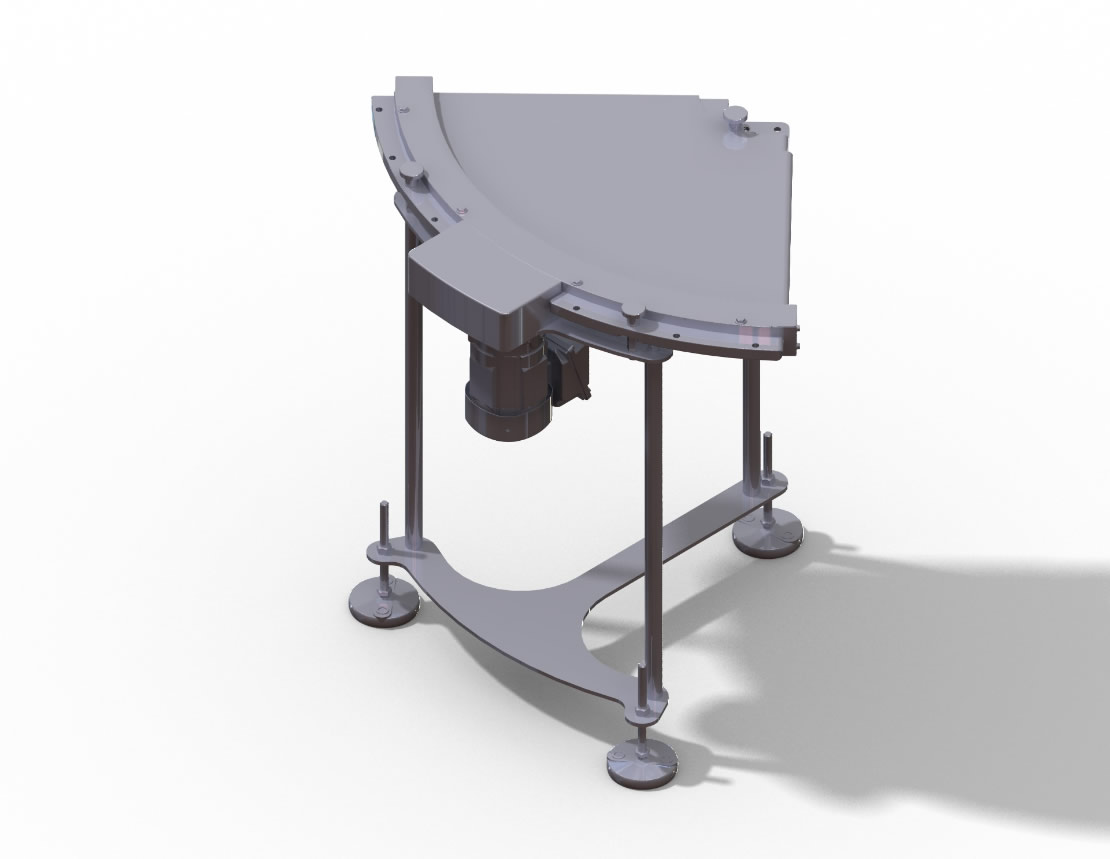

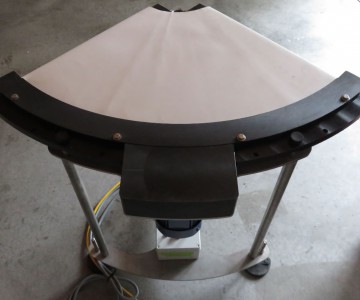

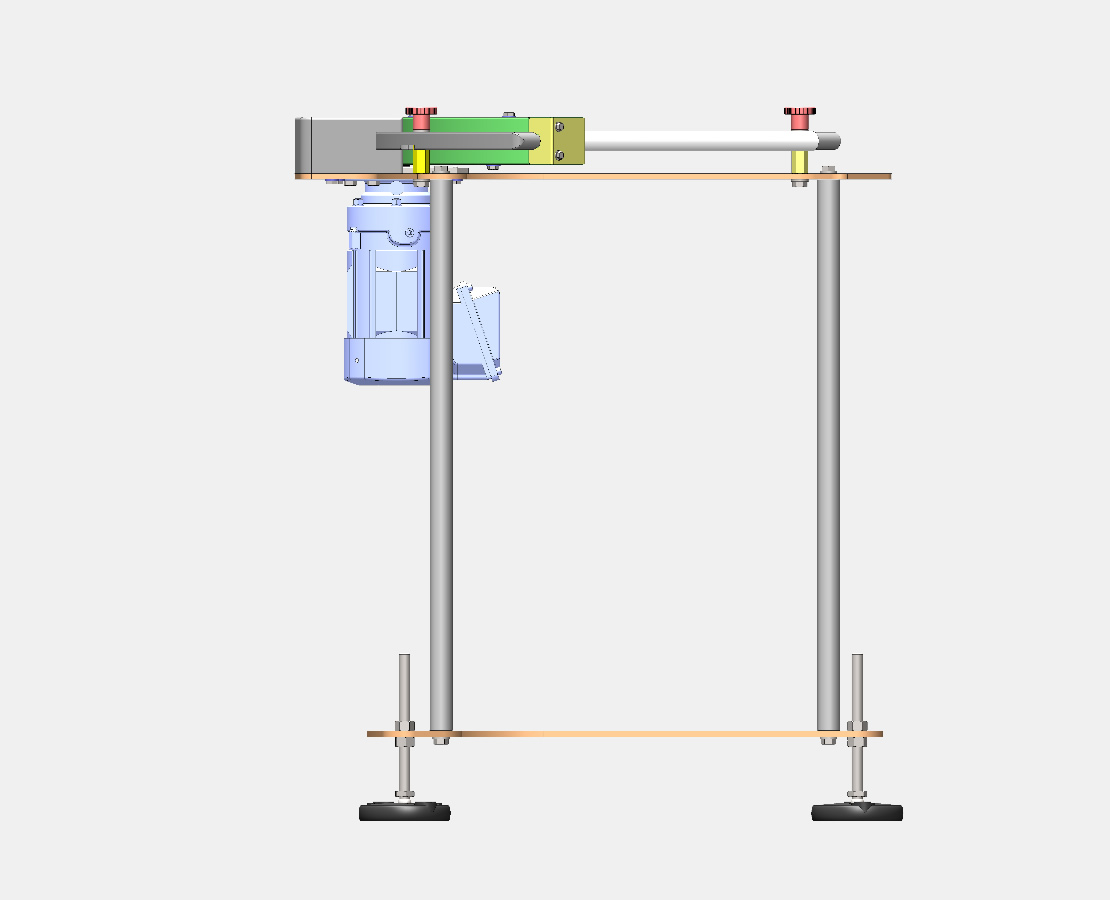

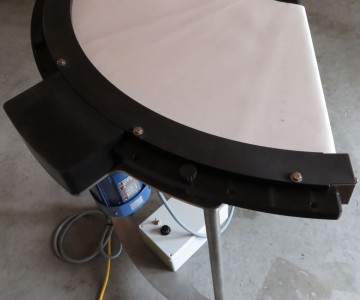

A corner belt conveyor that can handle small parts in all environments, is easy to clean as well as service and can be configured for any layout.
Specifications

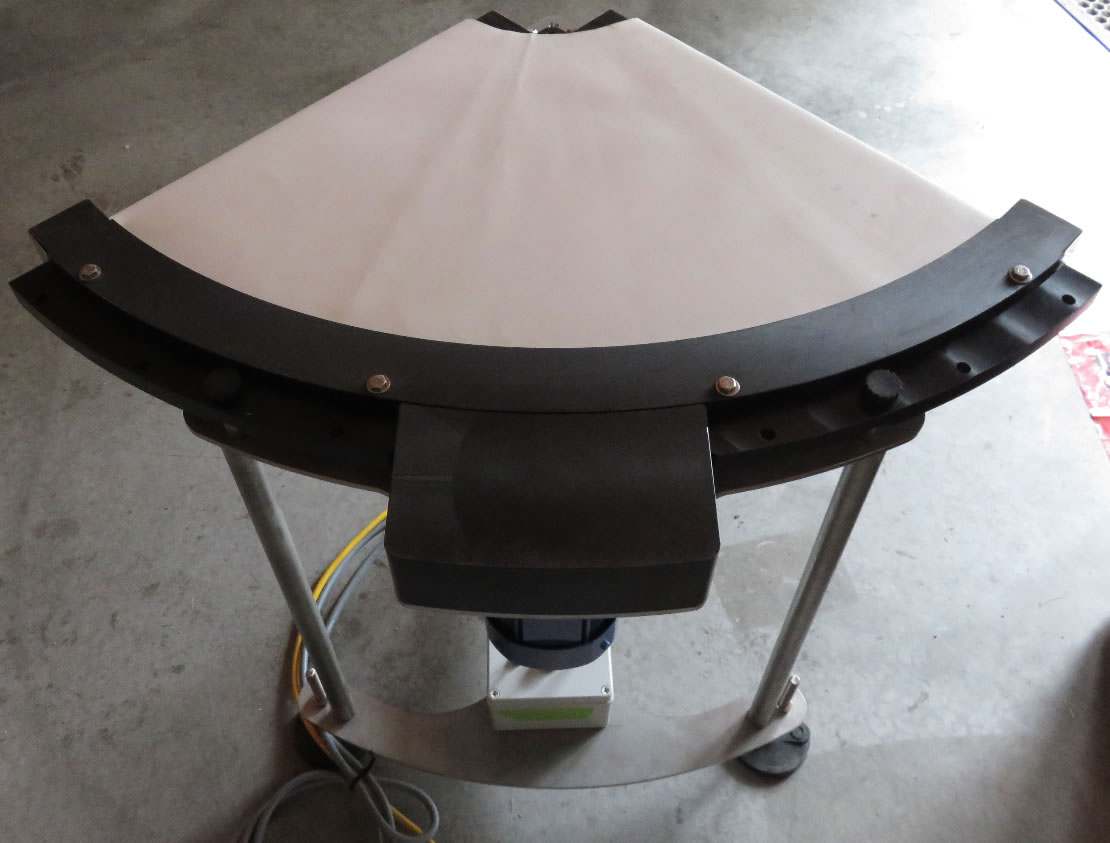

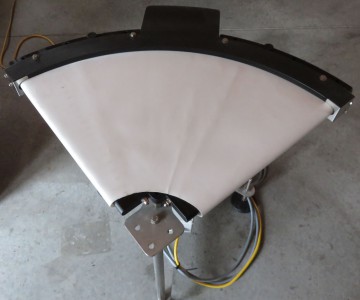

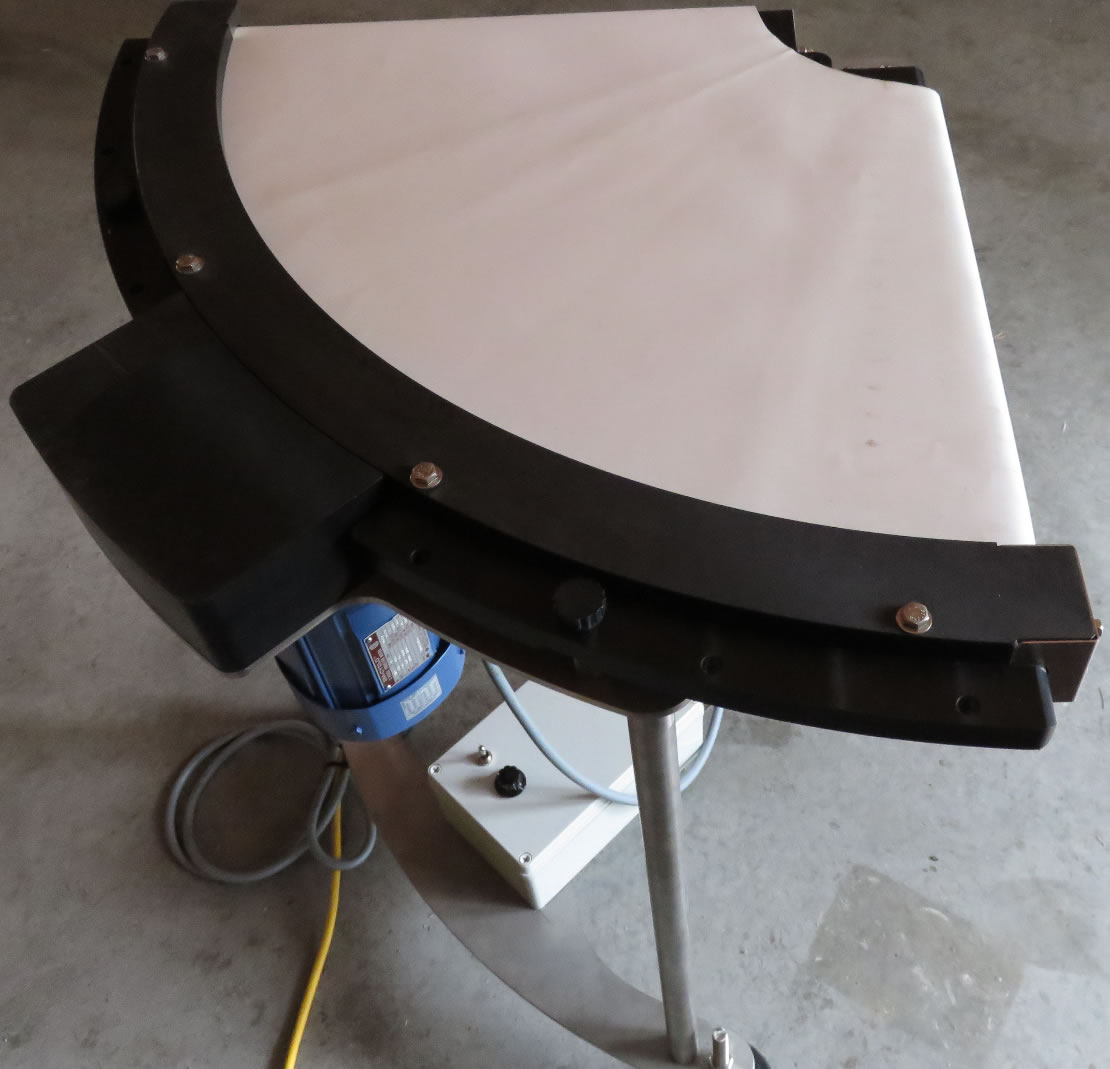

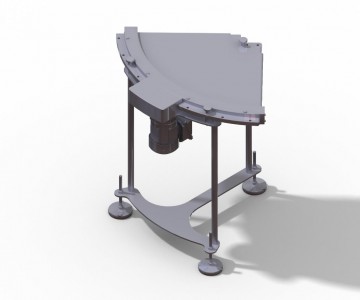

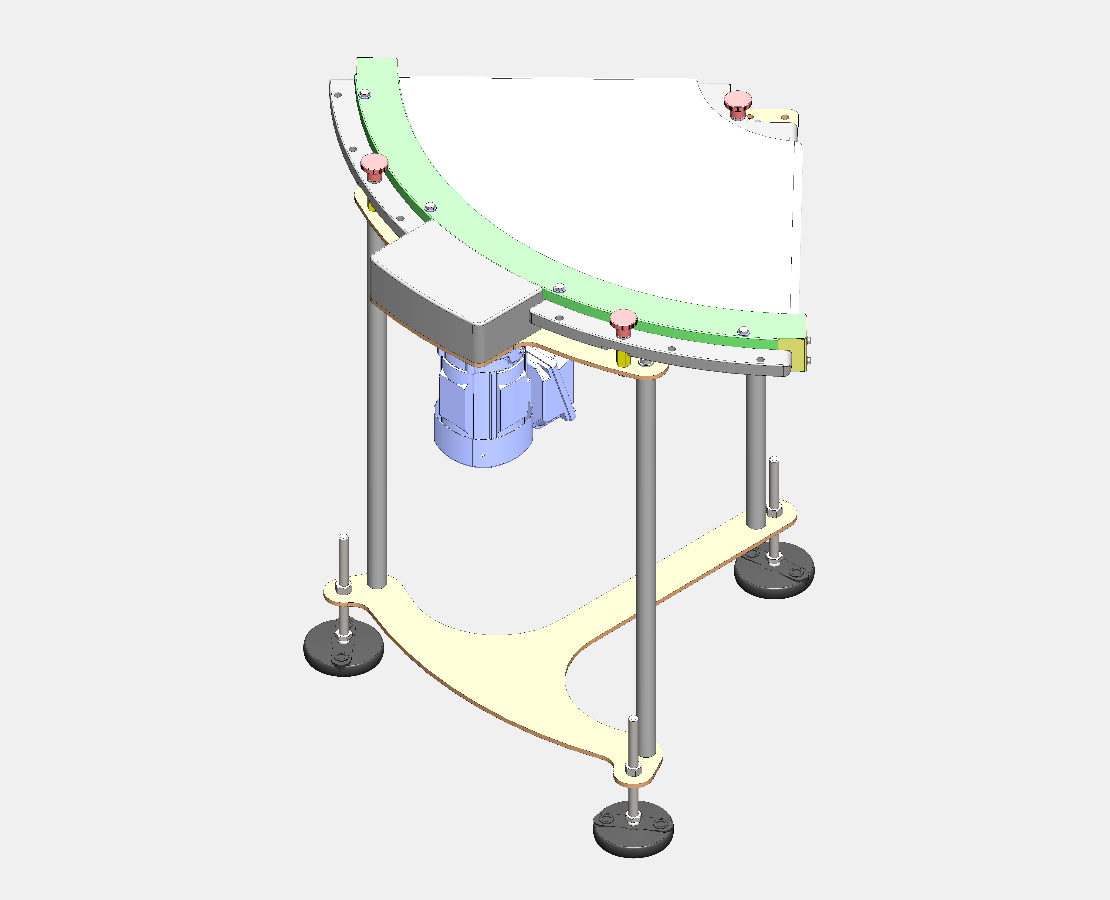

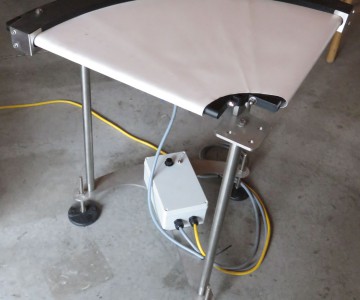

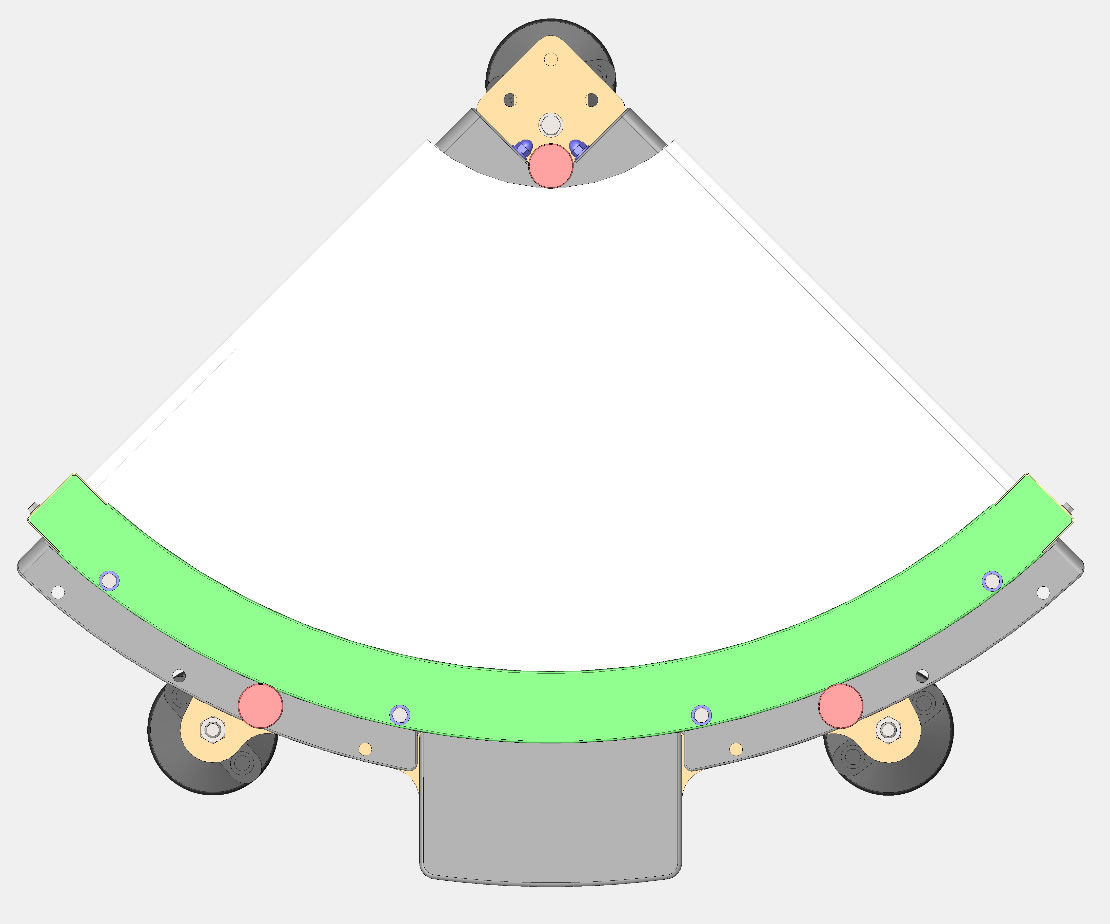

The Curve Light corner belt conveyor can handle small parts in all environments, is easy to clean as well as service and can be configured for any layout.
- ¾” DIA END ROLLERS
- INSIDE RADIUS FROM 5”
- SWEPT RADIUS 30/45/60/90/180 DEGREES
- SUPPORT AND GUIDE SYSTEMS CAN BE PROVIDED
- BELT WIDTHS FROM 6” TO 30”
- SPEEDS 100 FPM AT CENTER OF BELT NOMINAL
- ENDLESS BELTS-SEVERAL COMBINATIONS OF FABRIC AND COVER
- STAINLESS CONSTRUCTION FOOD APPROVED AVAILABLE
- SUMITOMO CYCLOIDAL GEAR MOTORS STANDARD – OTHER MANUFACTURERS AVAILABLE ON SPECIAL ORDER
Removal and installation in ONE MINUTE using NO TOOLS
